Hi Guys
Lotus esprit S4S 1995
Anyone point me in the right direction as to how to remove the front side/indicator light module.
Im trying to replace the lens covers but the one on the left hand has the screws seized up and wont come out. So I need to take the module out completely.
Any ideas will be greatly appreciated as usual.
Ameer
Welcome to The Lotus Forums
 |
Welcome to The Lotus Forums. Please register now to enjoy the full benefits of the forum. It's free, easy and you can even just log in with your facebook/twitter details if you wish or if you're already a member click here to sign in now. Be apart of The Lotus Forums by signing in or creating an account.
|
| Guest Message by DevFuse | |
How To Remove Front repeater lights
Started by KVJ 786, Oct 02 2011 07:19 PM
6 replies to this topic
#1
KVJ 786
-
- Basic Account
-
- 84 posts
LO
- Name:Ameer Ali
- Location:Kissimmee, Florida
- Car:Lotus Esprit S4S
Posted 02 October 2011 - 07:19 PM
#2
ramjet
-
- Moderator
-
- 4,317 posts
Einstein was HUUUGE apparently...
- Name:Michael
- Location:Victoria, Australia
- Car:1995 Esprit S4
- Modifications:No need. Would be surplus to requirements.
Posted 03 October 2011 - 10:59 AM
No?
All we know is that when they stop making this, we will be properly, properly sad.Jeremy Clarkson on the Esprit.
Opinions are like armpits. Everyone has them, some just stink more than others.
Opinions are like armpits. Everyone has them, some just stink more than others.
#3
Bibs
-
- CEO
-
- 28,835 posts
How fast?
- Name:Bibs
- Location:Aylesford, Kent, UK
Posted 03 October 2011 - 11:02 AM
On my car, which is different to yours (but may work on the same principle), the screws to remove the unit are tucked away behind the bulbs so you need to remove the cover and the bulb to remove the unit. If yours are the same, ^ he's onto the right answer!
#4
ramjet
-
- Moderator
-
- 4,317 posts
Einstein was HUUUGE apparently...
- Name:Michael
- Location:Victoria, Australia
- Car:1995 Esprit S4
- Modifications:No need. Would be surplus to requirements.
Posted 03 October 2011 - 11:12 AM
Ameer,
Electric drill and drill the heads off the light cover screws. Take it easy and you'll be able to get the cover off without damaging it, though if you're replacing them, it doesn't mater if you damage them. Then you can either take the module out to remove the seized screws or possibly even remove them while the module is in the car.
Electric drill and drill the heads off the light cover screws. Take it easy and you'll be able to get the cover off without damaging it, though if you're replacing them, it doesn't mater if you damage them. Then you can either take the module out to remove the seized screws or possibly even remove them while the module is in the car.
All we know is that when they stop making this, we will be properly, properly sad.Jeremy Clarkson on the Esprit.
Opinions are like armpits. Everyone has them, some just stink more than others.
Opinions are like armpits. Everyone has them, some just stink more than others.
#5
s4simon
-
- Basic Account
-
- 1,588 posts
Say... That's a nice car
- Name:Simon - Member of the Fearless 'Red Squadron'
- Location:Adelaide, Orstraylia
- Car:1994 S4
- Modifications:Sports exhaust, Big red start button
Posted 04 October 2011 - 08:59 AM

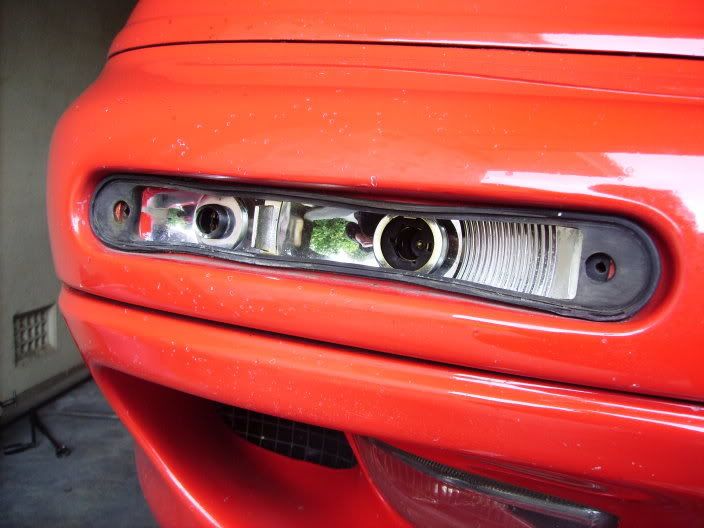

Here's a removed pic for reference (if that's of any help what so ever)
I'd carefully dremel the heads off so that you can at least get the cover off and work from there. What Mr. Ramjet said above. :-)
I'd carefully dremel the heads off so that you can at least get the cover off and work from there. What Mr. Ramjet said above. :-)
Edited by s4simon, 04 October 2011 - 08:59 AM.
Simon
94 S4
Oz owners don't forget to join the Aussie area of the forum (regional groups) and while you're there add your name to the 'Where the hell are ya' Map locator.
94 S4
Oz owners don't forget to join the Aussie area of the forum (regional groups) and while you're there add your name to the 'Where the hell are ya' Map locator.
#6
mr.oogieboogie
-
- Full Forum Account
-
- 2,380 posts
LOTUS
- Name:peter phillips
- Location:Mansfield
- Car:1994 brg s4
- Modifications:Custom stainless exhaust system inc sports cat & manifold and custom rear box. custom chip, k&n airfilter, recirculating bov, electric chargecooler, msd coils, ebc brake discs
Posted 05 October 2011 - 08:08 AM
Dril it, look under the rubber as mine had a rivet on each side as well as the screw. If you need the whole lot out it's either bumper off or break the back section it and take out and glue it once back in a bit extreme but the bumper can be a bitch to get off
It's Oogies turn to boogie
#7
Paul93Lotus
-
- Basic Account
-
- 726 posts
What happens when you floor it at the apex...
- Name:Paul
- Car:(Totaled) 1993 Lotus Esprit SE / 1995 Esprit S4S (Current)
Posted 16 October 2011 - 12:51 AM
Been there done that on my S4s. It is bumper off I'm afraid to get the actual unit out beyond the indicator lens. NOT a fun job, especially if you have rusted bolts/screws underneath. I used the opportunity to replace everything with stainless.
Then you have the fun of getting everything off...which means unbolting some of the ABS components in order to get your hands into extremely limited space areas. If you have big hands, this will make it even more of a PITA. I will advise making that your last resort for a lens change. Drill the screws and just be super careful.
Figure at least a half day without any drama. Since the only other cars that I know of that used these were the McLaren F1, best not to get crazy with the tools.
Then you have the fun of getting everything off...which means unbolting some of the ABS components in order to get your hands into extremely limited space areas. If you have big hands, this will make it even more of a PITA. I will advise making that your last resort for a lens change. Drill the screws and just be super careful.
Figure at least a half day without any drama. Since the only other cars that I know of that used these were the McLaren F1, best not to get crazy with the tools.
Edited by Paul93Lotus, 16 October 2011 - 01:25 AM.
